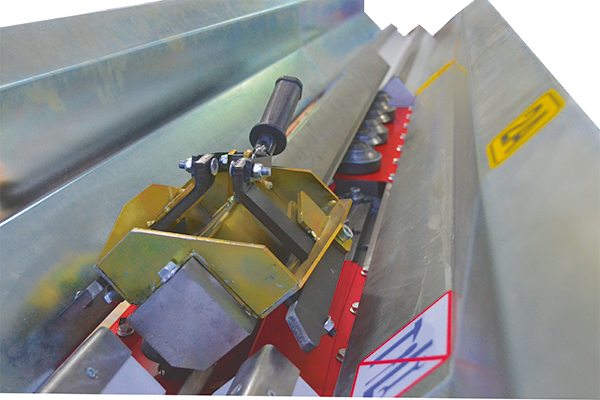

SC-01 DUCT ZIPPER ( SEAM CLOSER )
Machine can provide to zip square adn rectangular ducts quickly and easily.Thanks to it's zipping system,it shortens air tightness to minimum degree at ducts.Duct zipper with it's working system can provide labour savings and time savings.Beside of these,it is preferred machine with its economical advantage.
Details and Options
- Rolforming Bending Rollers have High Abrasion Resistance and Durability Continuity and Pressure Resistance High 2379 Cold Work Tool Steel. It is resistant to wear and tear.Duct passing spots (Side Support Extensions And Side Support Plates) are stable against Scratching, Corrosion And Wear.The Machine's Shields and passing places of the End of the Sheet are Made of Stainless Steel Sheet.
|
Technical Details |
KKM-02 |
|---|---|
|
Power |
3 KW |
|
Voltage&Frequency |
380/400 VAC 50-60 hz 3 ph+PE |
|
Current | 6 A |
|
Length |
2400+4350 mm |
|
Oiling |
Manuel |
|
Avaliable Zipping Duct Length |
Min. 150mmx 150 mm |
|
Work Speed |
5m/dk |
|
Sheet Metal Thickness |
0.50 - 1 mm Between Galvanise : 0.7 mm Stainless |
|
Optional |
1 mm - 1.20 mm Galvanise : 0.8 mm Stainless |
|
Width |
800 mm |
|
Length |
4.70 mm |
|
Height |
1000 mm |
|
Weight |
640 kg |
